jacketed coil condenser

Jacketed Coil Condenser


Length: 300mm

SKU: RS119.1

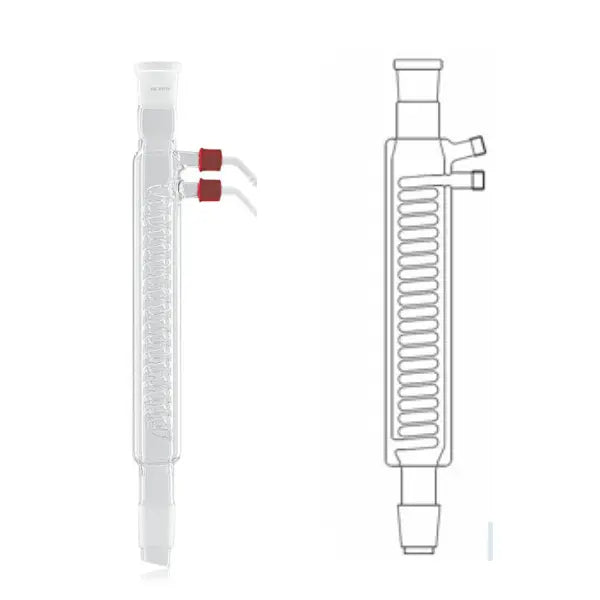

A Jacketed Coil Condenser is a essential lab equipment, offering superior cooling and condensation. Its coil-in-jacket design ensures maximum heat exchange, improving efficiency of the process, especially when distilling.

Jacketed Coil Condensers are made of  Borosilicate glass 3.3 which is resistant to heat and almost all chemicals. These double surface condensers have a coil as an inner cooling surface. This type has approximately twice the surface of a plain double surface condenser of the same effective length, thus especially suited to working with low boiling point media.

Typical application: use as a reflux condenser for condensation and feedback of the (solvent) vapor to the reaction mixture.

Image(s) are representative of the product group and not necessarily the individual product.

Note: End User Declaration required for the purchase of this product.

Other sizes are available as per the table below. Contact us for further information.

Item Code Socket Cone Length (mm)
RS119.1 B 24 B 24 300
RS119.2 B 24 B 24 500
RS119.3 B 24 B 24 600
Additional Information

300mm, 500mm, 600mm
