Oil Free Vacuum Pump Rocker Series
The Oil-Free Vacuum Pump Rocker Series is designed for laboratory and industrial vacuum applications where a clean, maintenance-free, and oil-free vacuum source is required. For Rocker 300 / 300DC / 400 / 410 / 800 / 801 / 810 / 811. Features and Benefits: 300 / 400 / 410 Compact...
The Oil-Free Vacuum Pump Rocker Series is designed for laboratory and industrial vacuum applications where a clean, maintenance-free, and oil-free vacuum source is required. For Rocker 300 / 300DC / 400 / 410 / 800 / 801 / 810 / 811.

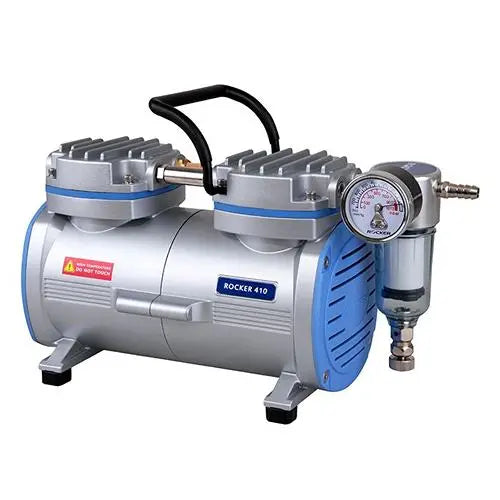

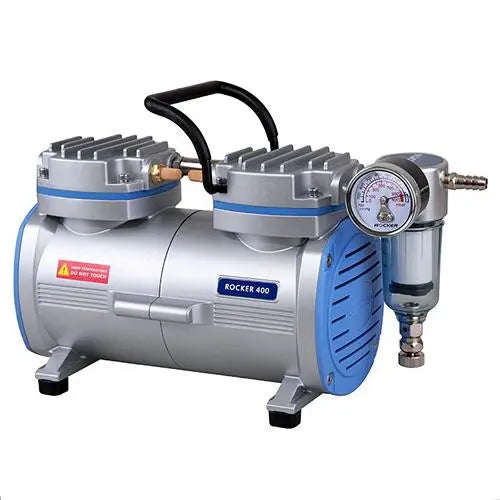

Features and Benefits: 300 / 400 / 410
- Compact and Care-Free: Rocker oil-less pumps are compact in size, light in weight and oil-mist-free
- Prote Overflow Protection: Equipped with Prote overflow protection to prevent liquid from being sucked into the pump
- Air inlet Protection: Filter cartridge at air inlet filters particles and moisture, which prevents pumps from damage
- Vacuum Regulation: Equipped with vacuum gauge and regulator for vacuum monitoring and adjustment
- Overheat Protection: Equipped with overheat protection device that shuts down when overheated and resumes once cooled down, making the pump safe and long lasting
Certifications: CE, UKCA, CSA, IP30, RoHS
Applications: vacuum filtration, suspended solid test, microbial detect, air sampling
Technical Data: 300 / 400 / 410
*Includes vacuum regulator, filter cartridge, overheat & overflow protection
*Hose Barb: ID8
| Model | Max Power | Max Vacuum | Max Flow Rate | Max Current | Weight | LxWxH |
| Rocker 300 | 60W | 99mBar abs. | 20L/min | 0.3A | 4.1kg | 27 x 14 x 20cm |
| Rocker 400 | 80W | 99mBar abs. | 34L/min | 0.4A | 5.2kg | 31 x 14 x 20cm |
| Rocker 410 | 80W | 25mBar abs. | 20L/min | 0.4A | 5.2kg | 31 x 14 x 20cm |

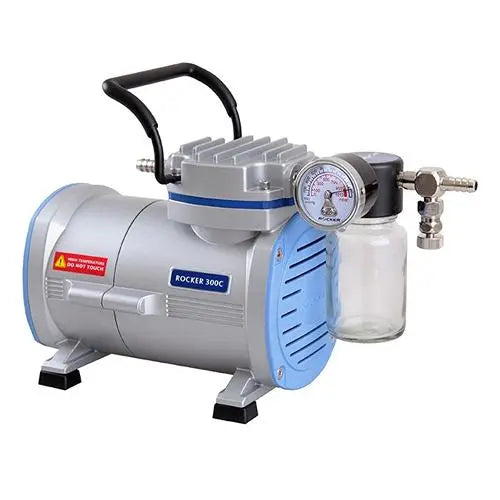

Features and Benefits: 300C PTFE coated
- Chemical Resistance: Applied with PTFE coated diaphragm and pump head with FKM valves, adequate to work in milder chemical gases.
- Oil-Free: Driven by diaphragm that needs no lubricant, making them maintenance free and oil-mist free
- Minimised Vibration and Quite: Superior weight distribution and assemblies minimise the vibration and noises and maximise stability
- Overheat Protection: Equipped with overheat protection device that shuts down when overheated and resumes once cooled down, making the pump safe and long lasting
Certifications: CE, UKCA, IP30, RoHS
Applications: solvent purification, solid phase extraction, vacuum filtration

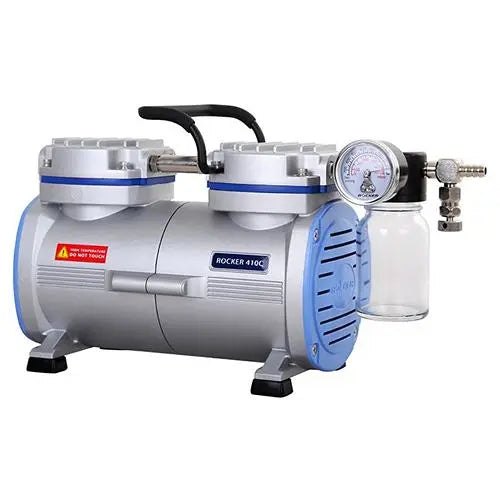

Features and Benefits: 410C PTFE coated
- Moderate Chemical Resistance: Diaphragm chamber coated with PTFE, offering good resistance to a wide range of corrosive gases except strong acid and alkali
- No Air Pollution, Maintenance Free: Drive by diaphragm, without the need of lubricant, regular oil changes and maintenance; with no oil polution
- Quiet and Low Vibration: Mechanism technique and quality vibration proof assembles make pumps run at the lowest noise with stability
- Overheat Protection: Equipped with overheat protection device that shuts down when overheated and resumes once cooled down, making the pump safe and long lasting
Certifications: CE, IP30, RoHS
Applications: solvent purification, solid phase extraction, vacuum filtration

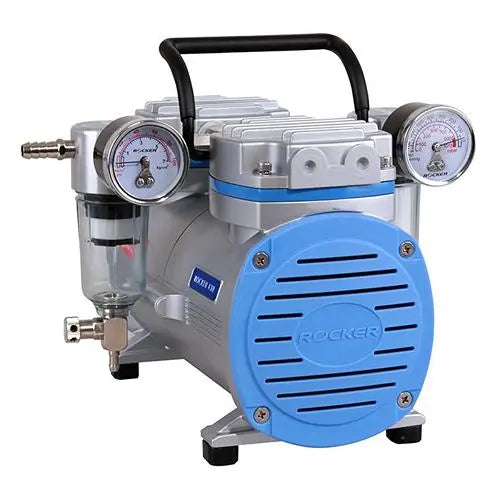

Features and Benefits: 430
- Vacuum / Pressure in One Pump: Works as both a vacuum pump and compressor. Equipped with guards and regulators for easy monitoring and adjusting the vacuum level or delivery pressure.
- No Air Pollution, Maintenance Free: Driven by piston, without the need of lubricant, regular oil changes and maintenance; with no oil pollution
- Prote Overflow Protection: Equipped with Prote overflow protection which can prevent a large amount of liquid from being sucked into the pump
- Moisture Trap with Filter Cartridge: Equipped with filter cartridge at the air inlet and outlet to filter particle and moisture to prolong the life of pump
- Thermal Protection Device: Equipped with overheat protection device that shuts down when overheated and resumes once cooled down, making the pump safe and long lasting
Certifications: CE, IP30, RoHS
Applications: vacuum filtration, suspended solid test, microbial detection, air sampling
pressure filtration

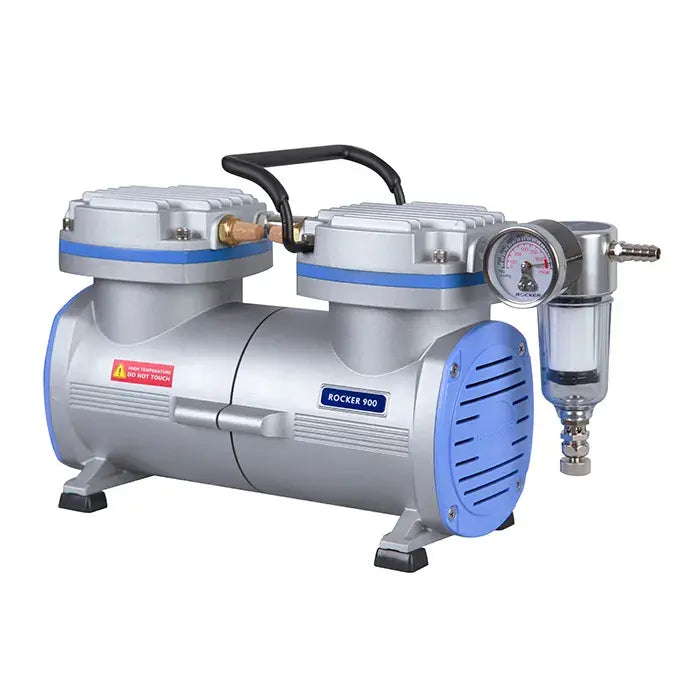

Features and Benefits: 900
- Compact and Care-Free: Rocker oil-less pumps are compact in size, light in weight and oil-mist-free
- Air inlet Protection: Filter cartridge at air inlet filters particles and moisture, which prevents pumps from damage
- Vacuum Regulation: Equipped with vacuum gauge and regulator for vacuum monitoring and adjustment
- Overheat Protection: Equipped with overheat protection device that shuts down when overheated and resumes once cooled down, making the pump safe and long lasting
Certifications: CE, IP30, RoHS
Applications: vacuum filtration, suspended solid test, microbial detection, air sampling pressure filtration, vacuum drying / oven / defoaming

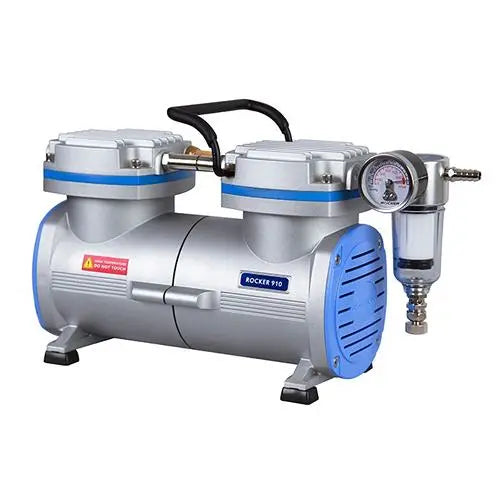

Technical Data: 300C / 410C / 430 / 910
*Includes vacuum regulator, moisture trap, glass moisture trap, overheat protection, vacuum gauge (for Rocker 430), filter cartridge (for Rocker 910)
*Hose Barb: ID8
| Model | Max Power | Max Vacuum | Max Flow Rate | Max Current | Weight | LxWxH |
| 300C | 60W | 99mBar abs. | 20L/min | 0.3A | 4.1kg | 29 x 14 x 20cm |
| 410C | 80W | 25mBar abs. | 23L/min | 0.4A | 5.7kg | 31 x 13.5 x 20.4cm |
| 430 | 125W | 145mBar abs. | 28L/min | 0.6A | 5.5kg | 24.7 x 23.5 x 20.4cm |
| 910 | 250W | 25mBar abs. | 45L/min | 1.2A | 7.3kg | 35 x 13 x 21cm |
Pack Size: each
Warranty: 24 months
| Model |
Rocker 300, Rocker 300C PTFE coated, Rocker 400, Rocker 410, Rocker 410C PTFE coated, Rocker 430, Rocker 900, Rocker 910 |
|---|
